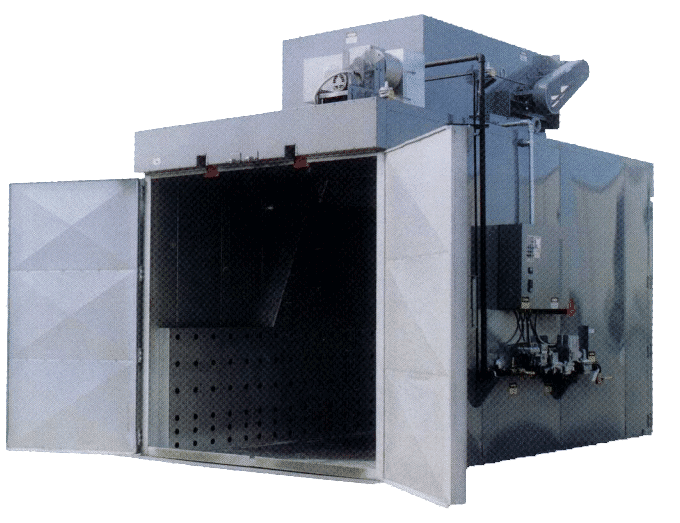

Curing Oven Product Guide & Features

Posted on October 14th, 2016 by vapro

Standard Features

  • control panel
  • Steelman ovens are built to comply with the requirements of the National Fire Protection Association Standard 86, Factory Mutual, and OSHA standards.

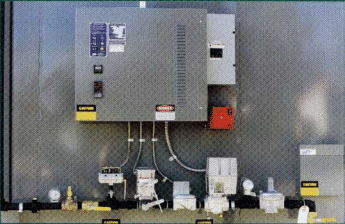

Control Features

  • Proportional digital LED, solid state, thermocouple actuated, temperature controller with deviation high protection
  • Digital batch timer with interlock system
  • 120 volt (single phase) control circuit transformer
  • U. L listed control panel on right side of oven
  • Electrical disconnect installed

Safety Features

  • Watlow® analog, solid state, manual reset high-limit controller
  • Fireye® flame safety control
  • Honeywell® modulating actuator
  • Maxon® control valve
  • Honeywell® safety shut-off valve with actuator
  • Antunes® high/low gas pressure switch
  • Honeywell® safety shut-off solenoid valve
  • Maxitrol® flow control regulator
  • Two manual shut-off ball valves
  • Antunes® air flow safety switches
  • Pressure relief doors/panels
  • Door switch to cut the heat but not the blowers
  • Purge timer (0 -10 minutes)
  • Powered exhaust
  • Electric motor overloads
  • Separate heating control contactors (electric ovens)

Construction Features

  • Integrally welded angle iron frame
  • 8 lbs. per cubic foot mineral wool semi-rigid insulation
  • 16 gauge aluminized steel interior
  • Removable air plenums
  • 16 gauge cold rolled steel exterior
  • No prefabricated panels or sections
  • Double doors on one end
  • Extra heavy-duty door hinges
  • Maxon cast iron burners
  • Painted with Steelman Tough Gray enamel and a zinc rich primer
  • Floor options include no floor, 1/4″ steel plate, 3″ insulated, 3″ insulated with cart wheel slots, or 3″ insulated with track wheel slots
  • Electric, natural gas, or LPG ovens available
  • Temperatures to 500′ F standard, to 850°F optional
  • Temperature differences of ± 10°F offered
  • Each oven is shipped assembled
  • Every oven is factory tested
