Burn-Off Oven Specifications Rubber/Plastics Processing

Posted on October 14th, 2016 by vapro

Plastic, Fiber, and Rubber

Model
Number
(WHD)
Work Area
Without Cart
(WW x WH x WD)
Volume
Without
Cart (Ft3)
Approx
Weight**
(lbs)
333 BA-P 3’0" 3’0" 3’0" 27 2500
344 BA-P 3’0" 4’0" 4’0" 48 3000
345 BA-P 4’0" 4’0" 5’0" 60 3500
455 BA-P 4’0" 5’0" 5’0" 100 5200
456 BA-P 4’0" 5’0" 6’0" 120 5400
567 BA-P 5’0" 6’0" 7’0" 210 6800
568 BA-P 5’0" 6’0" 8’0" 240 7300
667 BA-P 6’0" 6’0" 7’0" 252 7100
677 BA-P 6’0" 7’0" 7’0" 294 7600
778 BA-P 7’0" 7’0" 8’0" 392 9700
788 BA-P 7’0" 8’0"" 8’0" 448 10500
889 BA-P 8’0" 8’0" 9’0" 576 12400
899 BA-P 8’0" 9’0" 9’0" 648 13900
101011 BA-P 10’0" 10’0" 11’0" 1100 20500
101111 BA-P 10’0" 11’0" 11’0" 1210 22800
111211 BA-P 11’0" 12’0" 11’0" 1452 24500
EXTRUSION SCREW AND PIPE CLEANER
23.56 BB-P 2’0" 3’6" 6’0" 42 3800
23.59 BB-P 2’0" 3’6" 9’0" 63 3700
2412 BB-P 2’0" 4’0" 12’0" 96 4600
2415 BB-P 2’0" 4’0" 15’0" 120 5200
2418 BB-P 2’0" 4’0" 18’0" 144 5500
2420 BB-P 2’0" 4’0" 20’0" 160 6000
3415 BB-P 3’0" 4’0" 15’0" 180 6900
34.520 BB-P 3’0" 4’6" 20’0" 270 7300

OVEN STYLE “A” – Rear Mounted Burner Chambers

Front

Side

OVEN STYLE “B” – Side Mounted Burner Chambers

Front

Side


BURNOFF – CART SPECIFICATIONS

Model
Number
(WHD)
Work Area Clear
Inside & Over Cart
(WW x WH x WD)
Work Volume
Clear Over Cart (Ft3)
333 BA-P 3’0" 2’0" 3’0" 18
344 BA-P 3’0" 3’0" 4’0" 36
345 BA-P 4’0" 3’0" 5’0" 45
455 BA-P 4’0" 4’0" 5’0" 80
456 BA-P 4’0" 4’0" 6’0" 96
567 BA-P 5’0" 5’0" 7’0" 175
568 BA-P 5’0" 5’0" 8’0" 200
667 BA-P 6’0" 5’0" 7’0" 210
677 BA-P 6’0" 6’0" 7’0" 252
778 BA-P 7’0" 6’0" 8’0" 336
788 BA-P 7’0" 7’0"" 8’0" 392
889 BA-P 8’0" 7’0" 9’0" 504
899 BA-P 8’0" 8’0" 9’0" 576
101011 BA-P 10’0" 9’0" 11’0" 990
101111 BA-P 10’0" 10’0" 11’0" 1100
111211 BA-P 11’0" 11’0" 11’0" 1331
SIDE BURNER
23.56 BB-P 2’0" 2’6" 6’0" 30
23.59 BB-P 2’0" 2’6" 9’0" 45
2412 BB-P 2’0" 3’0" 12’0" 72
2415 BB-P 2’0" 3’0" 15’0" 90
2418 BB-P 2’0" 3’0" 18’0" 108
2420 BB-P 2’0" 3’0" 20’0" 120
3415 BB-P 3’0" 3’0" 15’0" 135
34.520 BB-P 3’0" 3’6" 20’0" 210

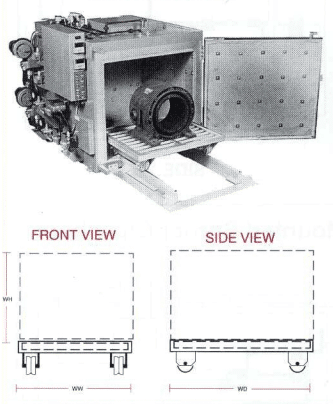

Flat Carts

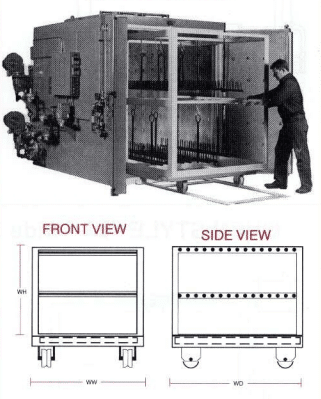

Hang Carts

Download the PDF
