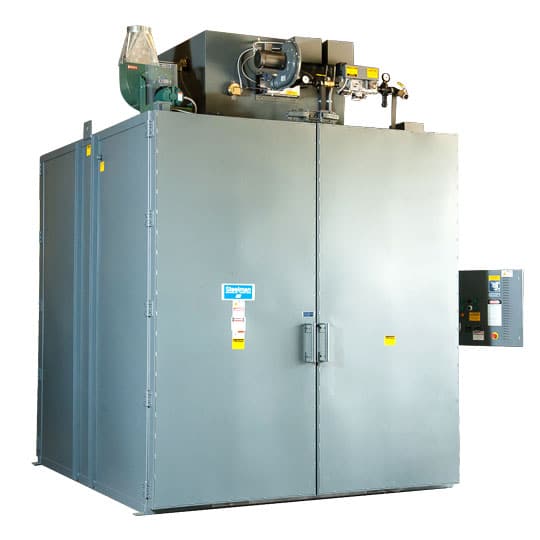

101012-DE-E - Double-Ended Electric Ovens

Standard Controls

Back Up High Limit & Deviation Control
Air Pressure Proving Switches for Blower Failure
Forced Exhaust for Removal of Solvent Vapor
Standard Service 208,240, 460 & 480 Volt (3 Ph / 60Hz)
Main Line Circuit Breaker is Included
U.L. Listed Control Panel & Components
LED PID Temperature Control
99 Hour Digital Timer with Interlock on Blowers
Air Circulation & Exhaust Purge Timer
Door Switch for Heat and Blower Cutoff

SKU: 101012-DE-E Category: Double-Ended Electric Ovens

Resources & Downloads

When considering a Steelman oven, know that we have a wide array of technical resources and documents to support our products. The following resources are directly related to 101012-DE-E. If you’re not sure if one of our products will meet your technical requirements, consult the following documentation. For more specific questions or concerns not addressed here, please contact us and speak to an experienced member of our team.

Ready to Order?

Additional information

Additional information

Interior Dimensions (WxHxD)	10' x 10' x 12'
Volume Inside	1200 cu. ft.
Exterior Dimensions (WxHxD)	12'4" x 14'1" x 13'4"
Appr. Weight	9850
Circulation Rate	14000
Changes per Minute	11.7
Circulation Motor (HP)	15(1)
Utility (KW)	205.8
Exhaust (CFM)	1000
Electric Motor (HP)	3/4
240/480V (Disconnect)	240
